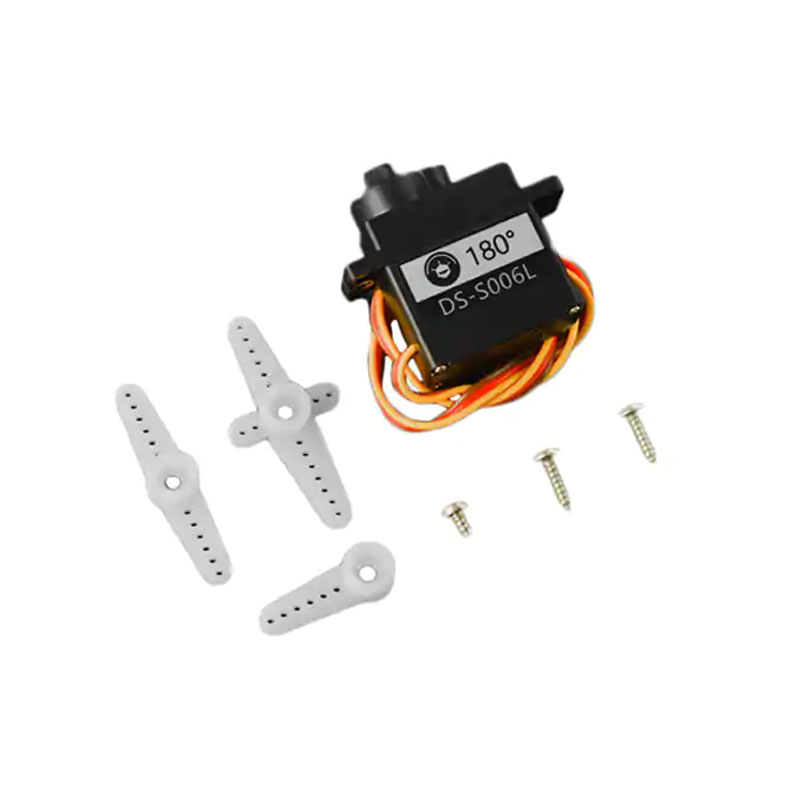

9G 180 CLUTCH SERVO

When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned or damaged due to external forces, which could bother you a lot…

Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly.

Clutch Function

When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.

Electronic Protection

After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.

Servo Internal Structure

This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 1.2Kg. There are no limited switches inside the servo so it can rotate smoothly in 360 degrees (manually only). Meanwhile, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 180 degrees rotation angle within the pulse range of 500-2500μsec.

Mechanical Dimensions

SPECIFICATION

• Operating Voltage: 4.8-6V DC
• Static Current: ≤8mA at 6.0V
• No-load Current: ≤110mA at 4.8V ≤120mA at6.0V
• Stall Current: ≤700mA at 4.8V ≤800mA at 6.0V
• Rated Torque: ≥0.45kgf·cm at 4.8V ≥0.55kgf·cm at 6.0V
• Stall Torque: ≥1.6kgf·cm at4.8V ≥2.0kgf·cm at6.0V
• Operating Angle: 180°±10°
• Communication Mode: PWM
• Pulse Width Range: 500~2500μs
