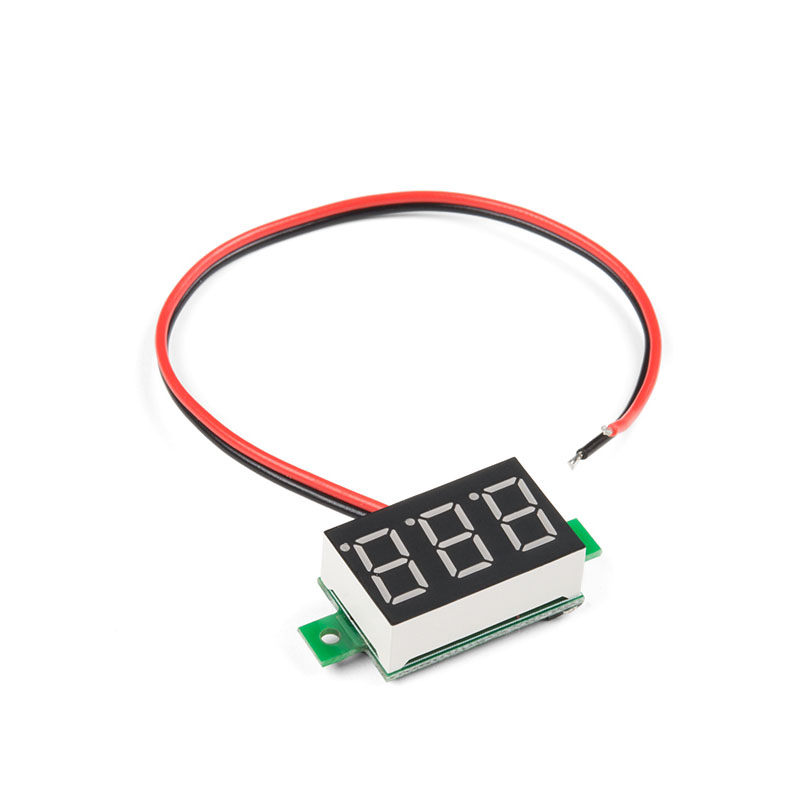

Digital LED Voltmeter
$2.95
Product Characteristics:
This Digital LED Voltmeter measures the voltage at a particular point of the system it has been hooked up to and then provides a readout on its three 7-segment LEDs. This voltmeter is able to provide a readout of voltages from 2.5VDC to 30VDC within a 1% accuracy.
Pick up Location: Kingsford (Sydney) NSW 2032, Australia
2 in stock
Description
Digital LED Voltmeter:
This Digital LED Voltmeter measures the voltage at a particular point of the system it has been hooked up to and then provides a readout on LEDs. The voltmeter is able to provide a readout of voltages from 2.5VDC to 30VDC within a 1% accuracy.
- Range: 2.5VDC — 30VDC
- Display: Three 0.28″ Red 7-Segment LEDs
- Refresh Rate: ~1sec
- Accuracy Within 1%
Description
Note:Please allow 1-3mm differs due to manual measurement.?Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.Feature:Range: DC 2.7-32V two-wire accessRefresh rate: about 300mS / timesMaximum input: <1.2 times the rangeAccuracy: 1 %(+/- 1 digit)Measurement range: Red DC 4.70V-32.0V,Green DC 2.70V-32.0V,Blue DC 3.00V-30.0VInput impedance > 100KWorking current:Red < 23mA, Green < 18mA, Blue < 13mAOptional lead length :15cmOutline size:23 x 15 x 10 mm(excluding installation ears).Installation hole distance: 28mmAperture: 2.8mmOperating temperature: -10- 65
