FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

$12.95

Product Characteristics :

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi) Overview

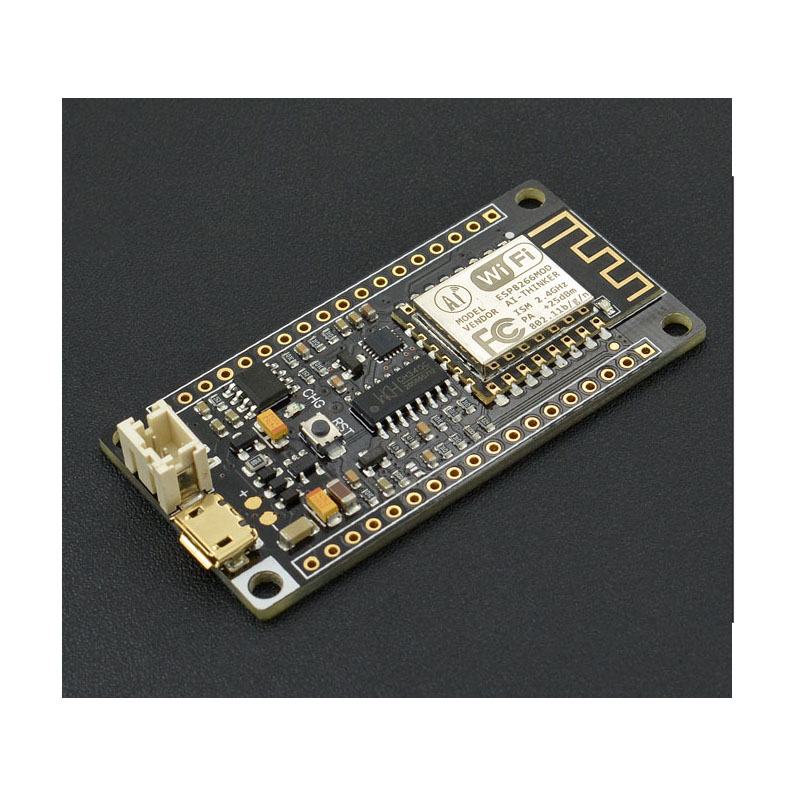

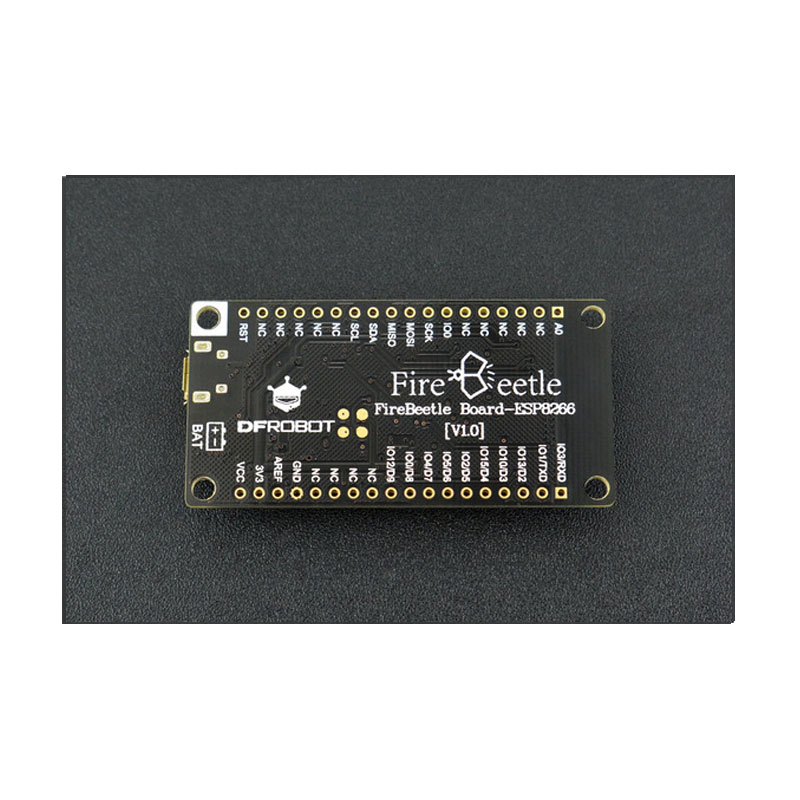

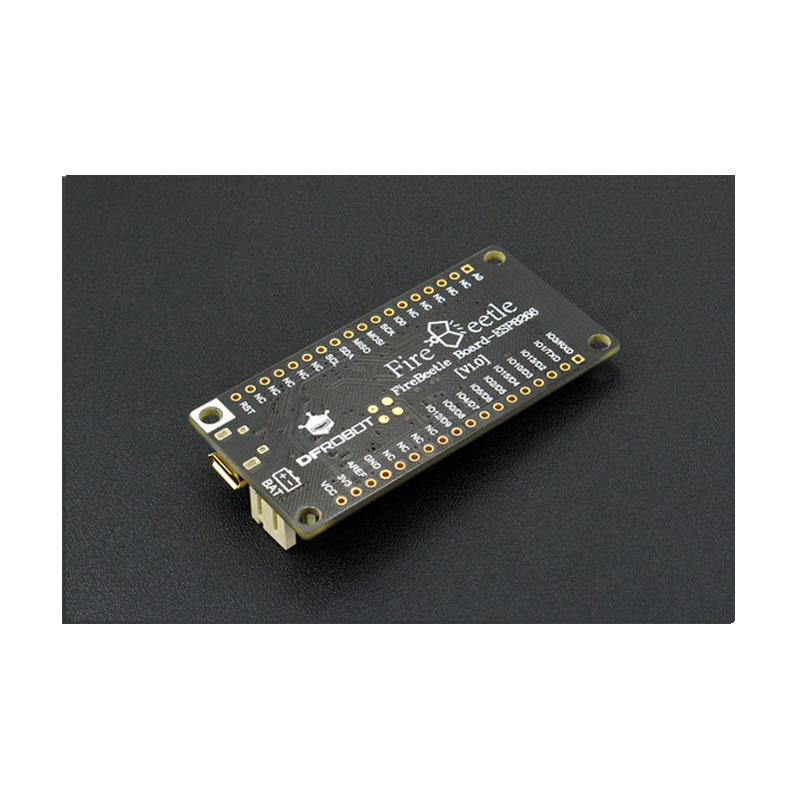

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC, and multiple interfaces such as HSPI, UART, PWM, I2C, and I2S. In DTIM10, the full power consumption to maintain a WiFi connection reached 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.
Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. The operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of the esp8266 board.

FEATURES :
Compatible with FireBeetle series
Compatible with Arduino programing
Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
Support RTOS SDK in Linux, Arduino IDE and Micropython.
Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)
Support TCP / IP
Support Lithium Battery (The Maximum charge current: 500mA)
Support Low Power Consumption
Support OTA Updating
Support STA/AP/STA+AP

SPECIFICATION :

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi) TECH SPECS

  • Operating Temperature: -40℃~+85℃
  • Operating Voltage: 3.3V
  • Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)
  • Microcontroller: Tensilica L106 (32-bit MCU)
  • Clock Speed: 80MHz (Maximum: 160MHz)
  • SRAM：50KB
  • External Flash Memory: 16MB
  • DC Current in the Low-Power-Consumption: 46uA
  • Average Operating Current: 80mA
  • Maximum Discharging Current: 600mA (LDO-3.3 Output)
  • Maximum Charging Current: 500mA
  • Digital Pin x10
  • Analog Pin x1
  • SPI interface x1
  • I2C interface x1
  • IR interface x1
  • I2S interface x1

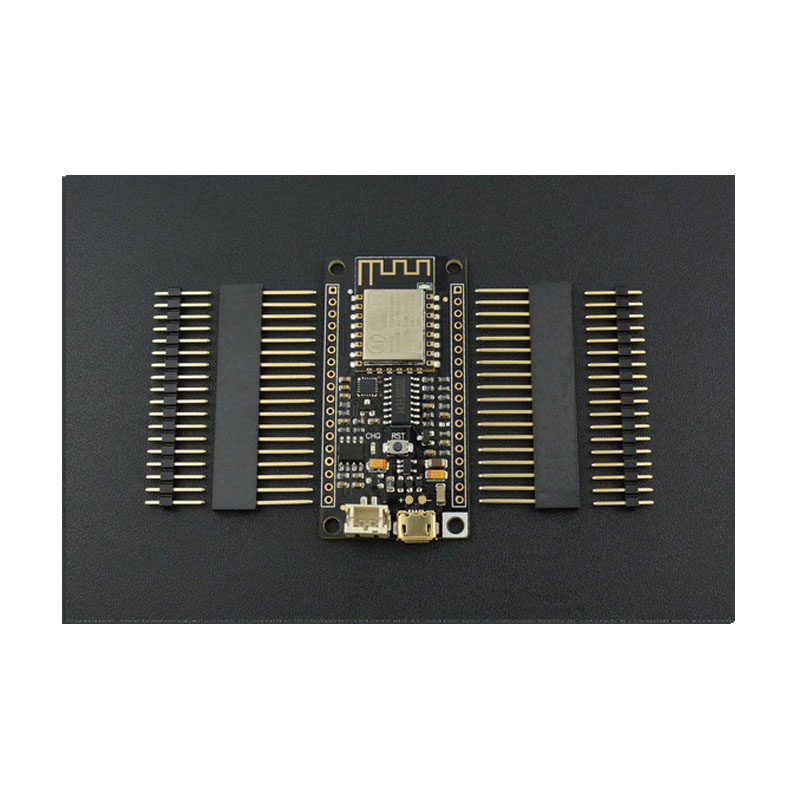

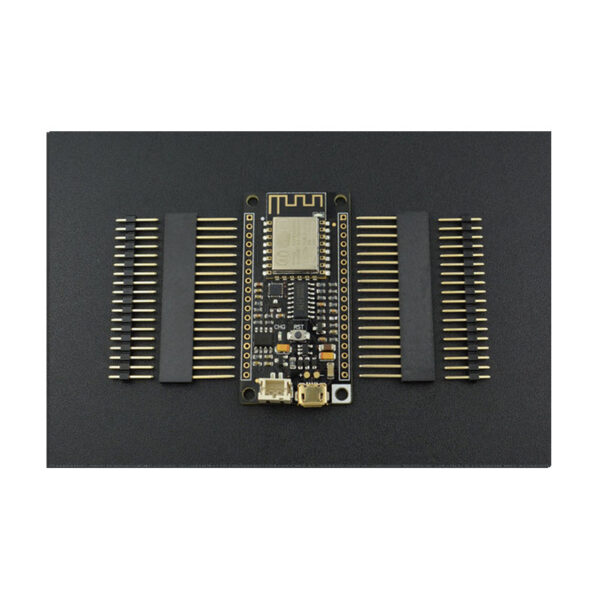

  • Interface: XH2.54mm Pin (No soldering default)
  • In Combination of Wi-Fi MAC/ BB/RF/PA/LNA
  • WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi

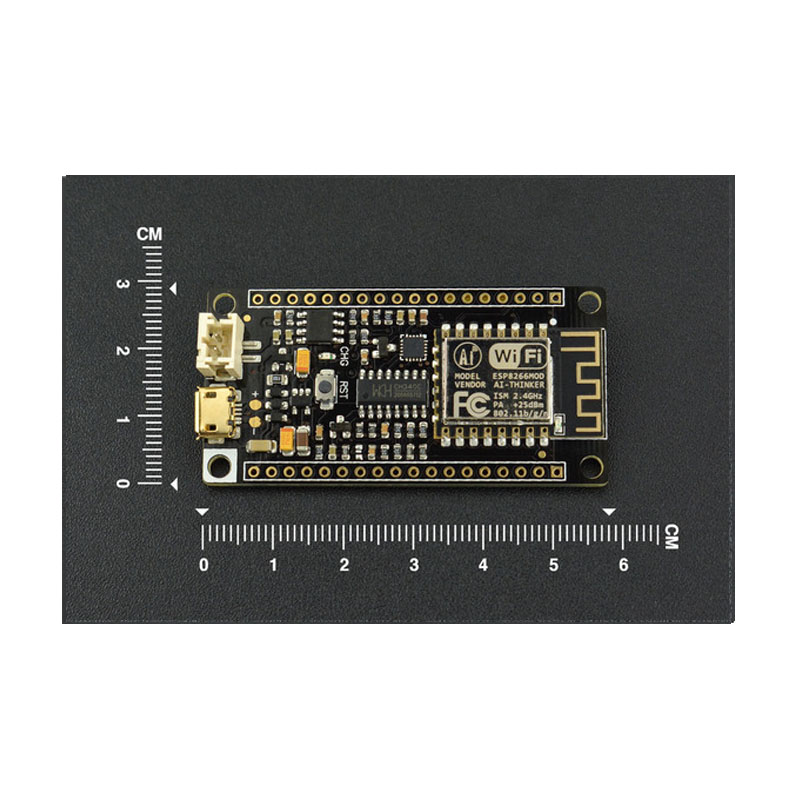

  • Dimension: 58 × 29(mm)
  • Operating Temperature: -10℃~+55℃
  • Mounting Hole Dimension: 53 x 24(mm)
  • Weight: 24g

Pick up Location: Kingsford (Sydney) NSW 2032, Australia

9 in stock

SKU: FBESP8266IOT Category:
