Gravity: DC Fan Module
$5.00

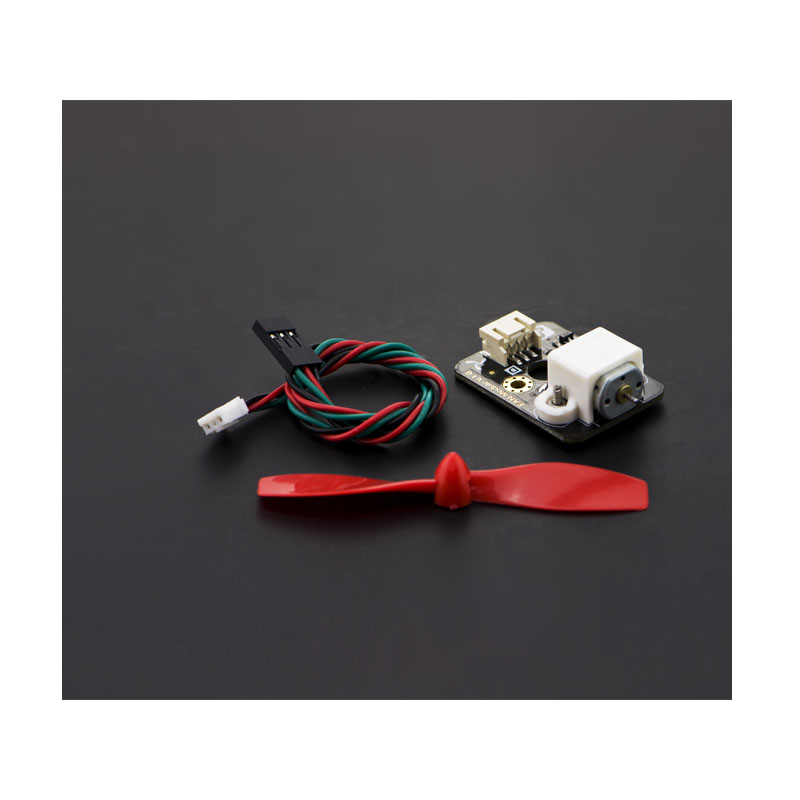

Gravity: DC Fan Module is a Simple and compact fan module suitable for many classroom projects including cooling systems, spinning machines and aerial propeller vessels. The module includes propeller, motor and digital cable.
Product Characteristics :
Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. It comes with a propeller, a 15,000 rpm motor and cable. Add flavor to your own interesting projects with this module.
This module is commonly used for STEM class.
SPECIFICATION
- Working Voltage：3~6V
- Working Temperature：-20~85℃
- Speed (no load)：15000 rpm
- Speed (6V)：8000 rpm
- Current (6V)：40mA
- Stall current (6V)：360mA
- Torque (6V):0.111kg/cm

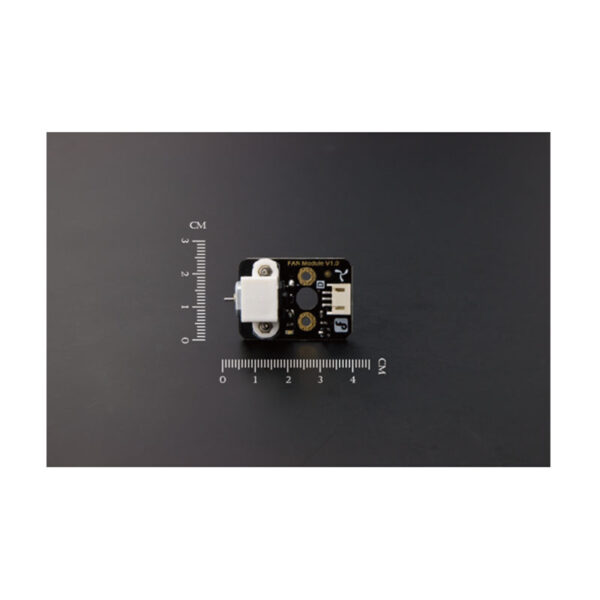

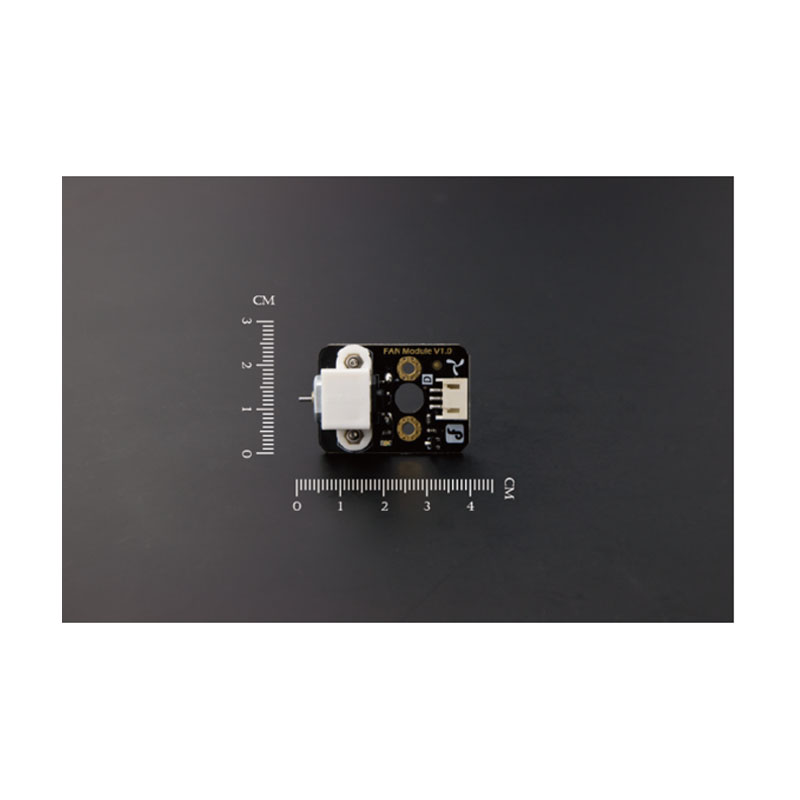

- Size: 36*27*13 mm(1.42*1.06*0.51″)
- Weight: 22g
Pick up Location: Kingsford (Sydney) NSW 2032, Australia
9 in stock
Description
INTRODUCTION
Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. It comes with a propeller, a 15,000 rpm motor and cable. Add flavor to your own interesting projects with this module.
This module is commonly used for STEM class.
Product Overview
Gravity: DC Fan Module is a Simple and compact fan module suitable for many classroom projects including cooling systems, spinning machines and aerial propeller vessels. The module includes propeller, motor and digital cable.
- Operating voltage: 3-6V
- Speed: 15,000rpm (no load), 8000rpm (6V)
- Current (at 6V): 40mA
- Stall Current (at 6V): 360mA
- Torque (at 6V): 0.111kg/cm
- Board dimensions: 13x36x27mm
Applications of Gravity: DC Fan Module :
Embedded Design & Development, Electronics Design, IoT (Internet of Things), Hobby & Education
SPECIFICATION
- Working Voltage：3~6V
- Working Temperature：-20~85℃
- Speed (no load)：15000 rpm
- Speed (6V)：8000 rpm
- Current (6V)：40mA
- Stall current (6V)：360mA
- Torque (6V):0.111kg/cm
- Size: 36*27*13 mm(1.42*1.06*0.51″)
- Weight: 22g
