Hobby Motor – Gear
$3.45
Product Characteristics:

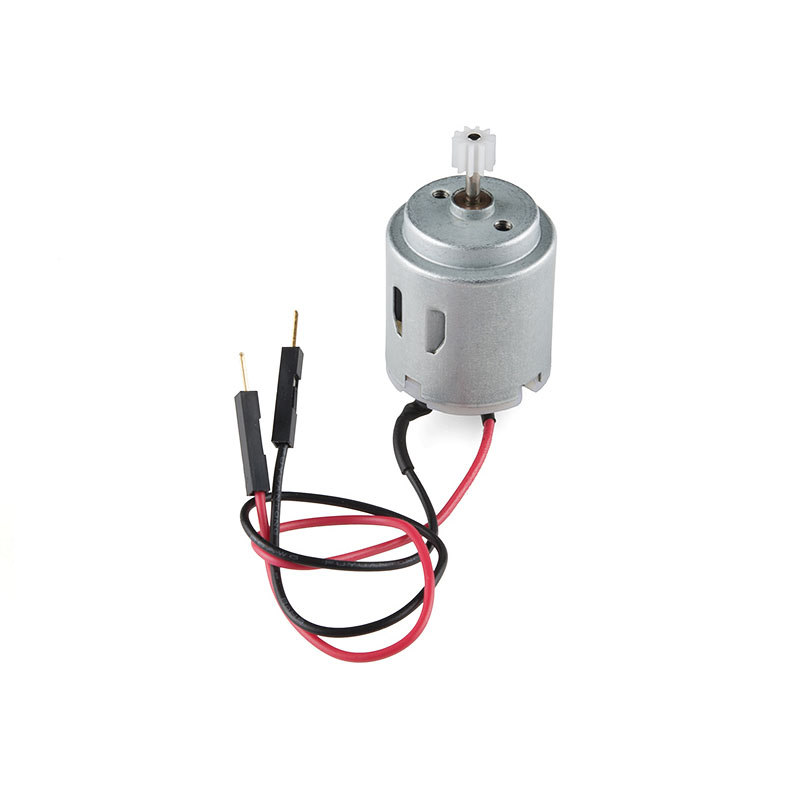

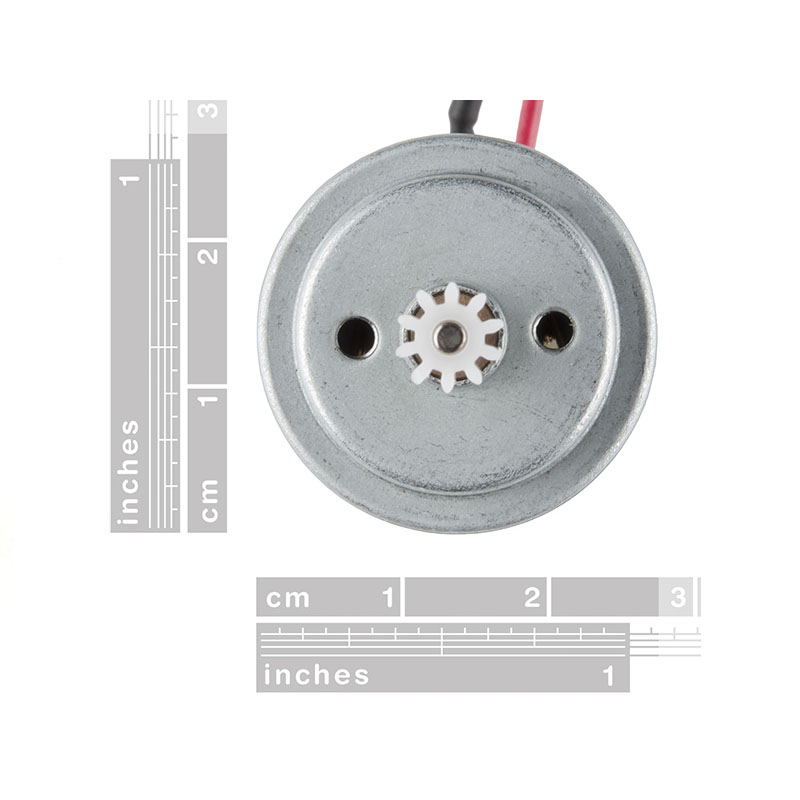

This is our new Hobby Motor now with a 6mm, 10 tooth, gear to make your basic projects a little simpler to manage. It works well for basic things like making a fan or spinning something pretty fast without much resistance.
The motor has a normal operating voltage range of 1.0 to 3.0VDC but can handle a max load of up to 12VDC and a no load speed of 6600±10% RPM (@1.0V DC, 110mA).
Pick up Location: Kingsford (Sydney) NSW 2032, Australia
3 in stock
Description
This is our new Hobby Motor now with a 6mm, 10 tooth, gear to make your basic projects a little simpler to manage. It works well for basic things like making a fan or spinning something pretty fast without much resistance.
The motor has a normal operating voltage range of 1.0 to 3.0VDC but can handle a max load of up to 12VDC and a no load speed of 6600±10% RPM (@1.0V DC, 110mA). More information is available in the spec sheet linked below.
Note: Though the Datasheet for this Hobby Motor states a max voltage range of 3.0VDC, our supplier has ensured us that it can handle a max load of 12VDC.
DC Hobby Motor Type 716 Gear motor Toy Motor DC Hollow Mot
Description Name:716 motor
Axial length:7mm
Diameter of axle:0.8mm
Application:used to connect to the main shaft gear and propeller, model cars, model aircraft
