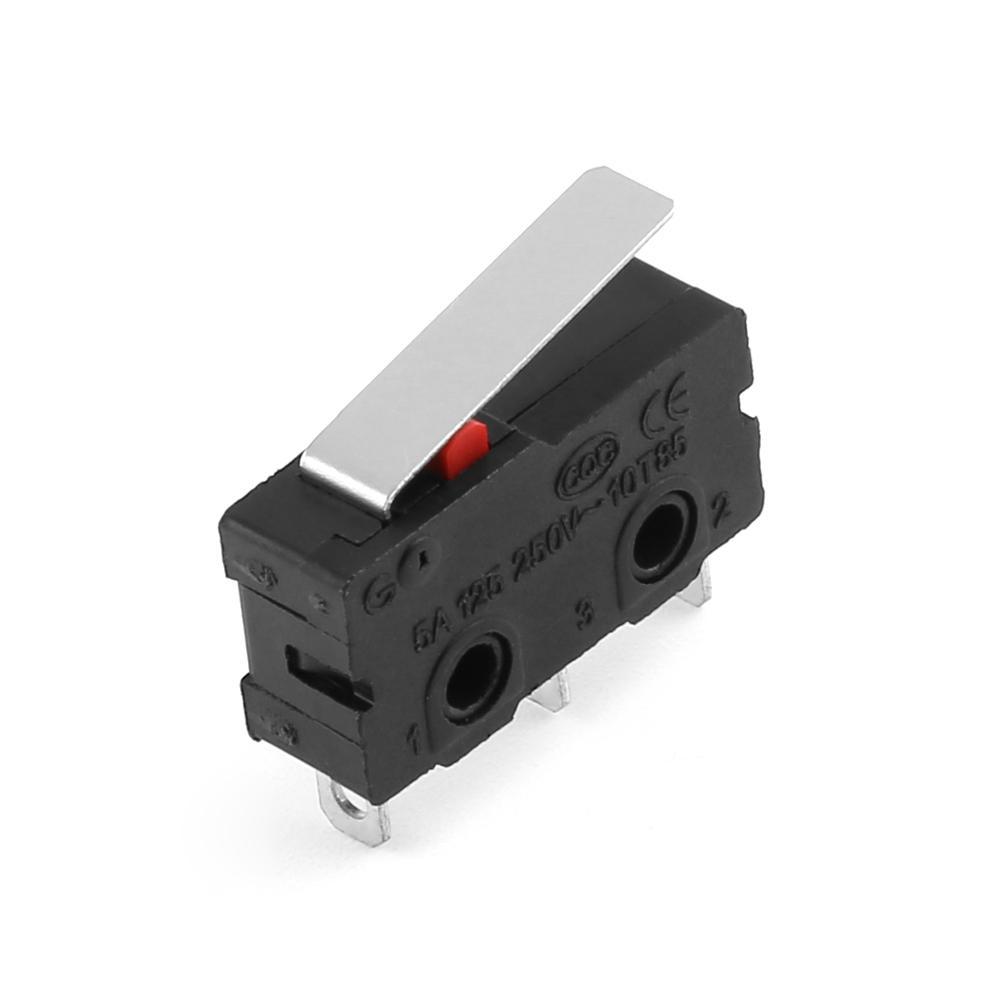

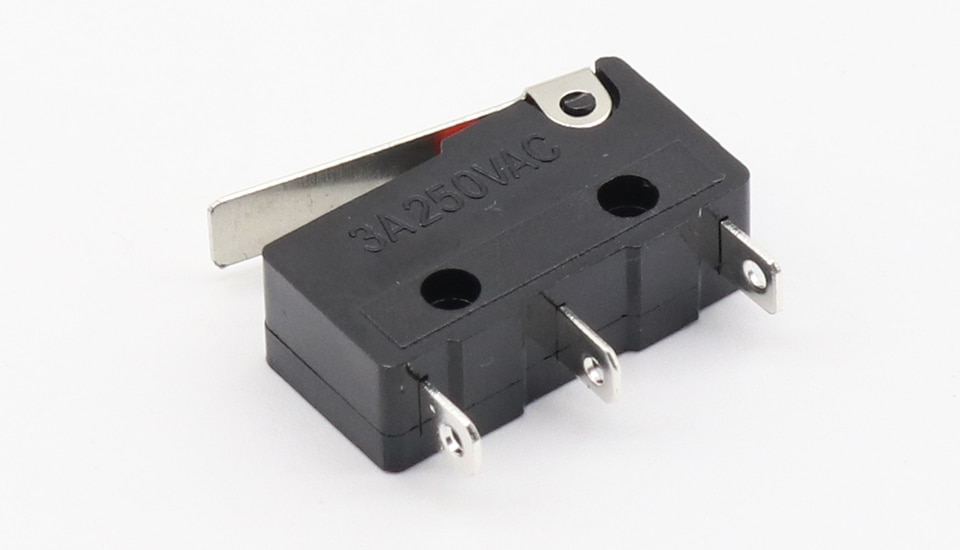

Limit Switch 3 Pin N/O N/C 5A 250VAC KW11-3Z

Description

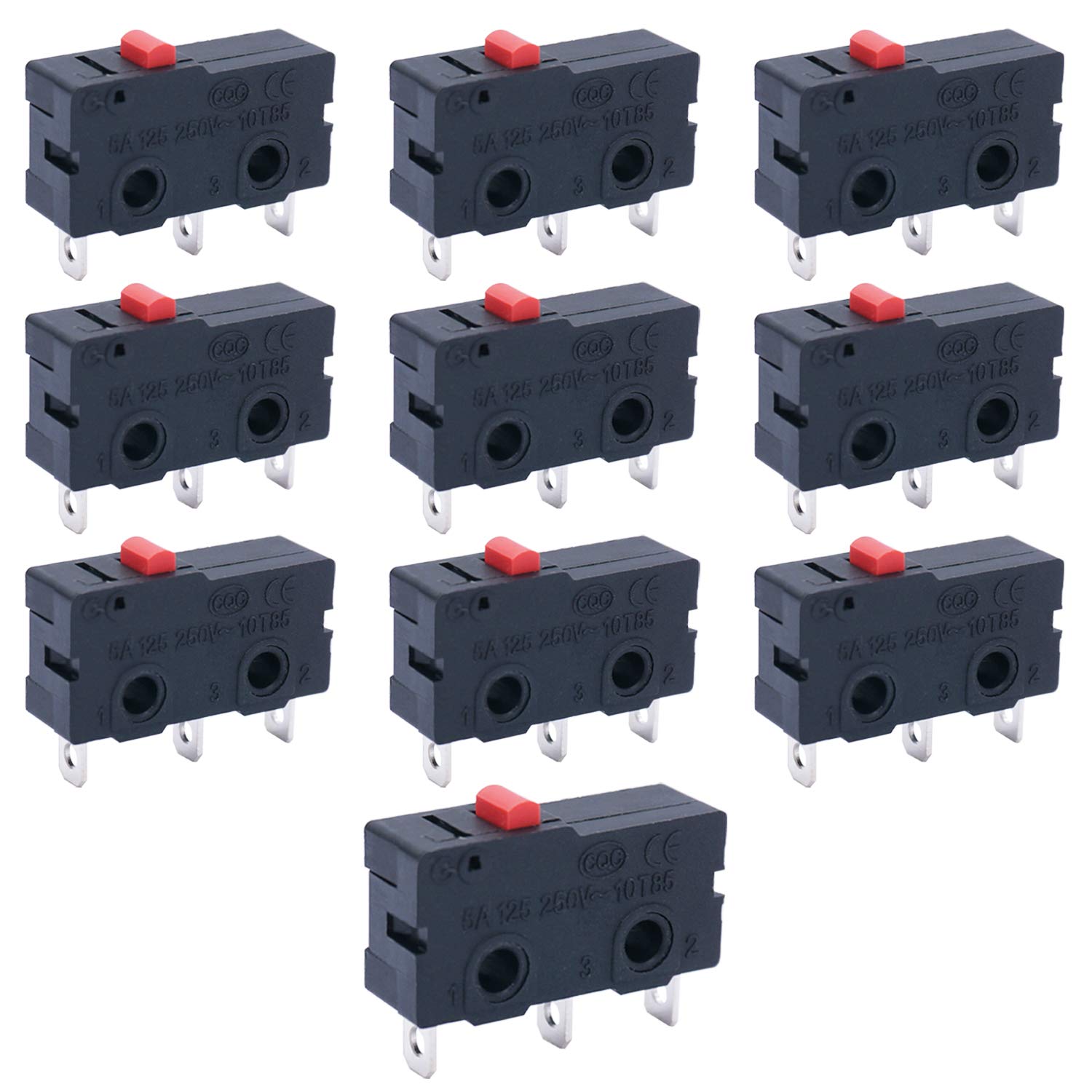

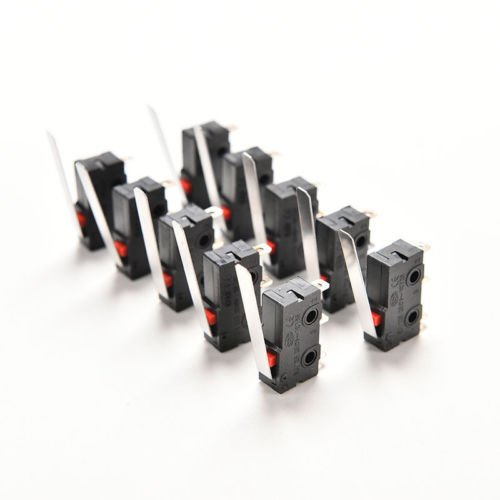

Limit Switch 3 Pin N/O N/C 5A 250VAC KW11-3Z (10 PCS):

Limit Switch 3 Pin N/O N/C 5A 250VAC KW11-3Z (10 PCS) are widely used in computer mouse, car mouse, automobile electronic products, communications equipment and so on.

Specifications

• Customized:
  Yes
• Warranty:
  other
• Color:
  Black
• Switch Type:
  Micro Switch
• Features:
  5A250VAC
• Material:
  Plastic
• Item Type:
  Switches
• Model Number:
  KW11-3Z
• Current:
  5A

  Rating:

  5A 250VAC

  Contact Resistance:≤50mΩ

  Insulation Resistance:≥100MΩ

  Dielectric intensity:≥1000VAC/1min
  Life:≥1,000,000 Cycles

Description of :

• Micro switch ZM and ZM1 Series are subminiature snap action switches from the Honeywell micro switch family of Z Series subminiature basic switches.
• Although small in size, the ZM and ZM1 Series are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac).
• The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium.
• The overall length of the ZM and ZM1 Series are less than 20 mm [0.78 in
• A wide variety of integral stainless steel levers are available and when combined with the subminiature package size, may adapt the switch to a wide variety of applications.
• The ZM Series is agency certified to UL, cUL, CE, and CQC for worldwide use, while the ZM1 Series is agency certified to UL, cUL, ENEC, and CQC for worldwide use

Features

The ZM and ZM1 series comes with the following features in general-

• Well suited for power-duty and logic-level loads
• SPDT, SPNC, or SPNO switch options
• Power duty switching with silver alloy contacts
• Gold-plated, silver alloy contacts for logic-level control
• Pin plunger and various stainless steel lever options, including internal and external mount levers
• Variety of electrical terminations
• Certified per UL, cUL to UL 61058-1, ENEC to IEC 61058-1, and CQC to GB 15092.1
