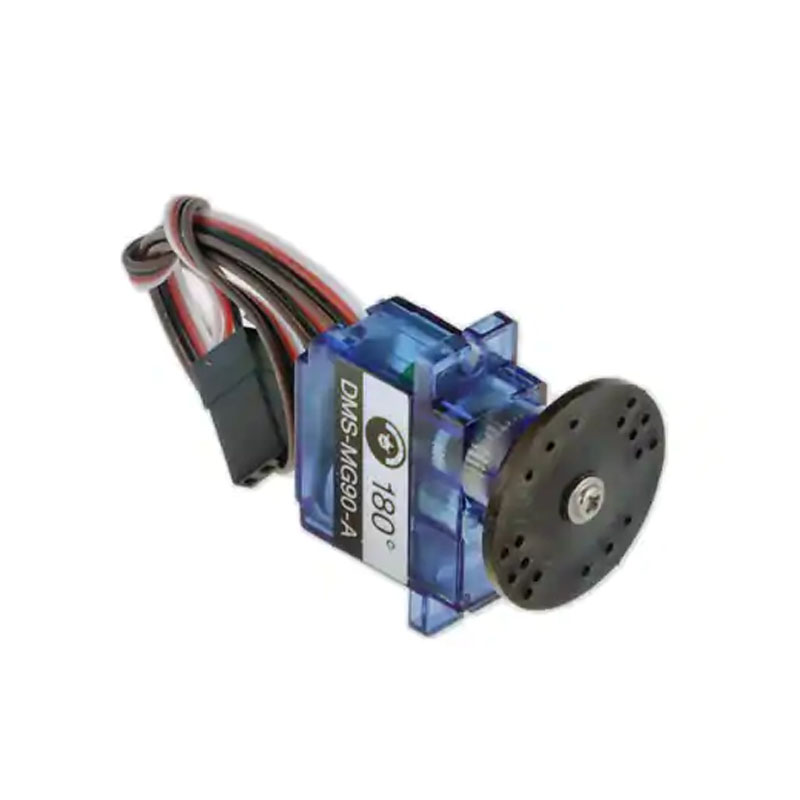

METAL SERVO 1.5KG 9G 180 DEG

$10.93

METAL SERVO 1.5KG 9G 180 DEG has built-in metal gear that could be much more durable than the previous plastic version. It features large rotating angle and torque, easy-to-install, stable and accurate performance.

Product Characteristics:

Type DC Motor
Function Servomotor, RC (Hobby)
Motor Type Positional Rotation
Voltage – Rated 4.8 ~ 6VDC
Size / Dimension Rectangular -1.315″ x 0.480″ (33.40mm x 12.20mm)
Length – Shaft and Bearing 0.157″ (4.00mm)
Termination Style Wire Leads with Connector
Operating Temperature -10°C ~ 50°C

Pick up Location: Kingsford (Sydney) NSW 2032, Australia

9 in stock

SKU: 9G180MS15 Category:

Description

INTRODUCTION of METAL SERVO 1.5KG 9G 180 DEG:

Here comes the new number of our Servo family—a 9g 180° Metal Servo with Analog Feedback. The servo has built-in metal gear that could be much more durable than the previous plastic version. It features large rotating angle and torque, easy-to-install, stable and accurate performance, which could be the best choice for micro-robot controlling and suitable for professionists or makers to develop.With a tiny body of 0.9*0.48*1.28”, this servo can be fitted into any tight spaces and its torque can reach up to 1.5Kg·cm. Since there is no limit switch inside the servo, users can manually make the servo rotate in 360 degrees. At the same time, the power consumption of the servo is pretty low, so the common battery or USB power supply is able to provide enough power for the servo’s normal operation. This servo can be controlled by the Arduino Servo Library to realize about 180° rotation within pulse range 500-250µsec. Additionally, it can achieve more complicated tasks and suit a wider range of applications compared with the former 180° servo. Furthermore, this servo provides analog signal with 0~3.3V feedback and it can be connected with MCU to realize close-loop feedback control.

The servo comes with four types of servo horn to meet different various using requirements.

Recommended operating voltage: 4.8V-6V. Please note that over-voltage or blocking the servo deliberately will permanently damage the product.

9g 180° Metal Servo with Analog Feedback (1.5kg)

SPECIFICATION



  • Pulse Width Range: 500-2500µsec
  • Neural Position: 1500µsec
  • Dead Bandwidth: = 5 µsec
  • Operating Voltage: 4.8V~6V
  • Storage Temperature: -20?~60?
  • Operating Temperature: -10?~50?
  • Operating Travel: 180°± 5°(500?2500µsec)
  • Maximum Travel: 220°± 10°
  • Speed(no load): 0.12±0.01 sec/60@4.8V

0.1±0.01 sec/60@6.0V

  • Stall Torque: 1.3±0.1kg·cm @4.8V

1.5±0.1kg·cm @6.0V

  • Static Current: ?40±5mA
  • Current(at no load): 200±20mA @4.8V

220±20mA @6.0V

  • Current(at stopped): ?800±30mA @4.8V

?1100±30mA@6.0V

  • Operatable Travel: about 180°(500?2500 µsec)
  • Left & Right Travelling Angle Deviation: = 3°
  • Centering Deviation: = 1°
  • Control System: change pulse width
  • Amplifier Type: digital controller
  • Rotation Direction: clockwise
  • Outline Dimension: 22.9*12.2*32.5mm/0.9*0.48*1.28”
  • Weight: 12±1g
