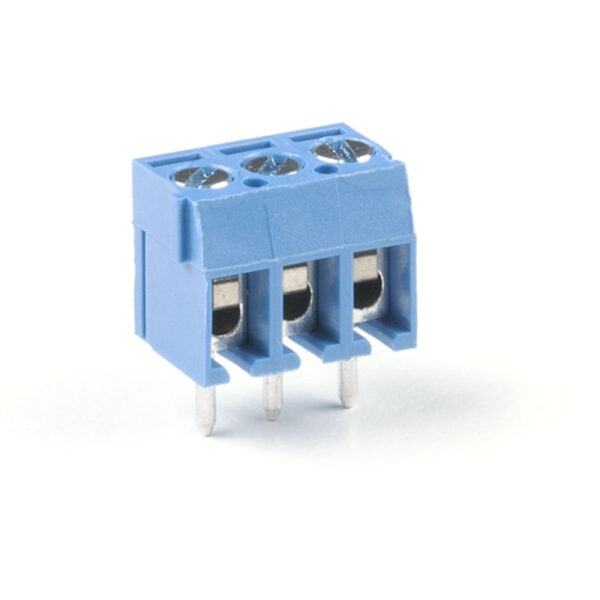

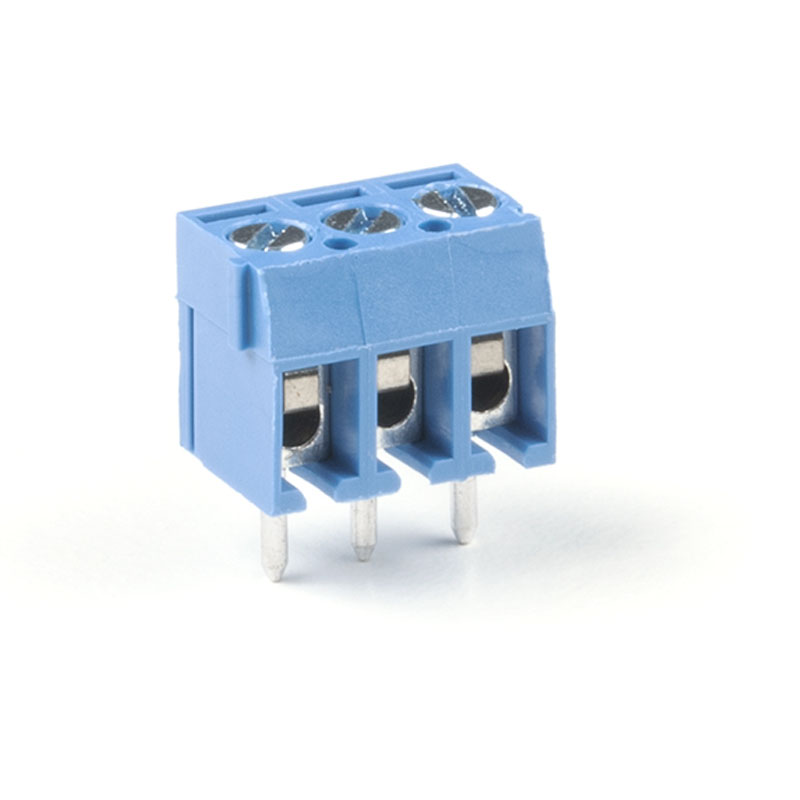

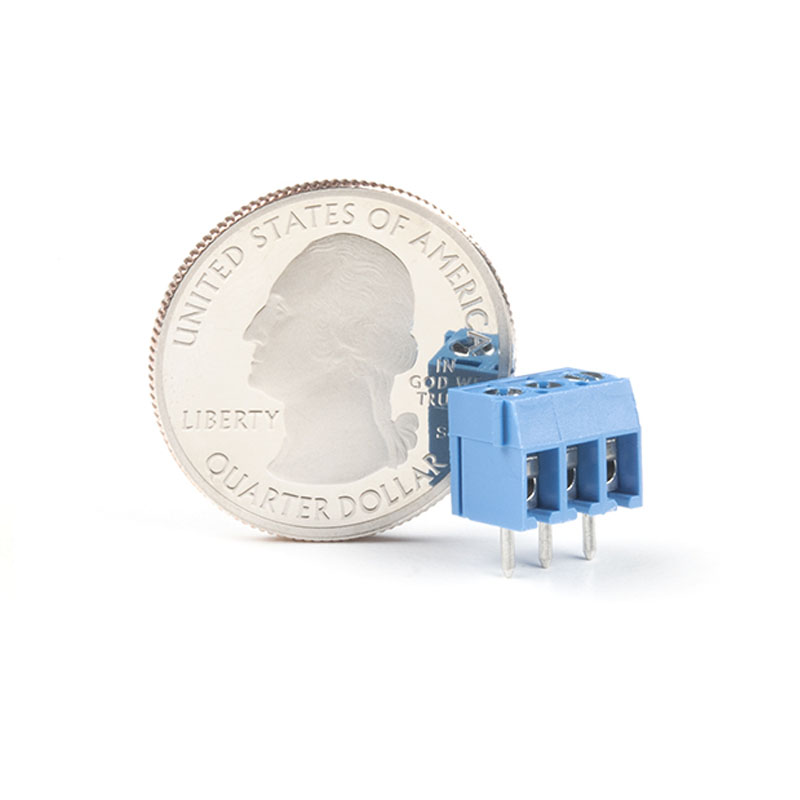

Screw Terminals 3.5mm Pitch (3-Pin)

$1.10

Screw Terminals 3.5mm Pitch (3-Pin) are side-entry screw terminal blocks. They have terminals that hold and release wires.

Product Characteristics:

Screw Terminals with 3.5mm pitch pins. Comes in 2, 3, or 4 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 125V @ 10A. Terminal can accept 16 to 26AWG wire. 3.5mm/138mil pin pitch will not fit standard 0.1″ perf boards but this is the most common pitch screw terminal.

Pick up Location: Kingsford (Sydney) NSW 2032, Australia

10 in stock

SKU: ST35MMP Categories: ,

Description

Screw Terminals 3.5mm Pitch (3-Pin) are side-entry screw terminal blocks. They have terminals that hold and release wires through the simple adjustment of a screw making it easy to make temporary connections to a PCB. The pitch size is 3.5 mm (0.138″). Each block has two terminals for the stripped ends of 24 – 18 AWG wires, and units can slide together to make longer strips. These screw terminals are rated for 125 V, 10 A (UL).These blocks have a ridge on one side and a slot on the other, which allows to slide and lock together to form arbitrarily long strips.

Specifications of Screw Terminal  3.5 mm Pitch (3-Pin):

  • Wire gauge:  24-18 AWG
  • Current rating:  10 A
  • Voltage rating:  125 V
  • Contact resistance:  20 mΩ
  • Wire strip length:  5 mm
  • Terminal type:  screw
  • Orientation:  side entry

Dimensions:

  • Pins:  3
  • Spacing:  3.5 mm

Package includes:

1 X The 3 pin screw terminal 3.5 mm pitch
