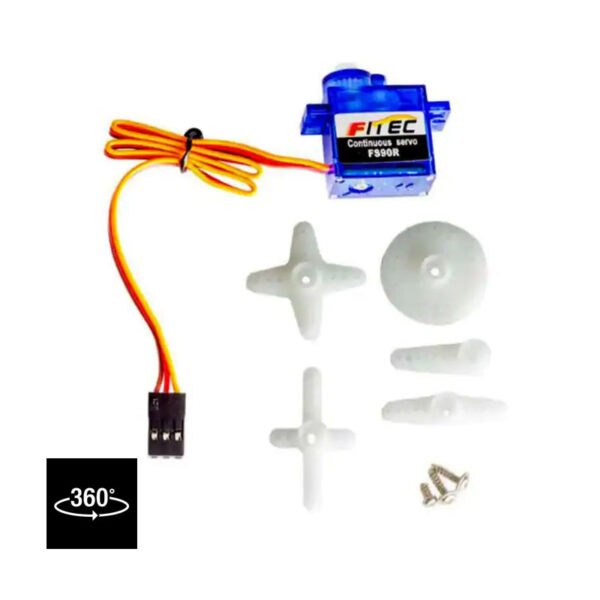

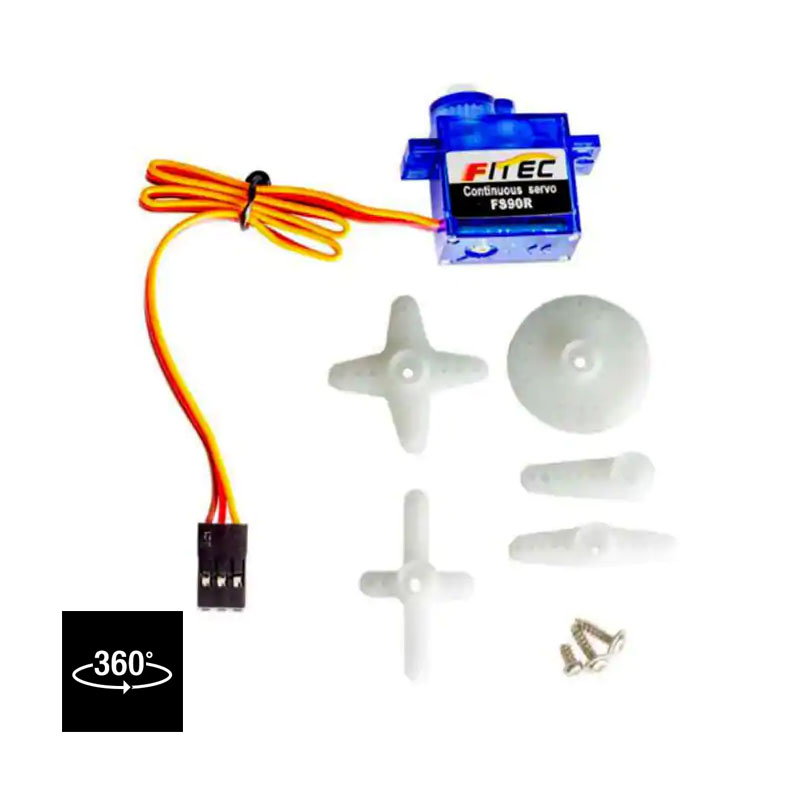

SERVOMOTOR RC 130 RPM 4.8-6V
$8.30
Hot sell Feetech 9g SERVOMOTOR RC with arm 6V 1.5kg.cm analog 360 degree continuous rotation servo for diy RC car .
Product Characteristics:
Type DC Motor
Function Servomotor, RC (Hobby)
Motor Type Continuous Rotation
Voltage – Rated 4.8 ~ 6VDC
RPM 130 RPM
Size / Dimension Rectangular – 0.492″ x 0.472″ (23.20mm x 12.50mm)
Termination Style Wire Leads with Connector
Pick up Location: Kingsford (Sydney) NSW 2032, Australia
2 in stock
Description
SERVOMOTOR RC 130 RPM 4.8-6V
Hot sell Feetech 9g SERVOMOTOR RC 130 RPM 4.8-6V with arm 6V 1.5kg.cm analog 360 degree continuous rotation servo for diy RC car
Size:23.2mm B：12.5mm C：22mm
Weight:9g ±0.2
Gear type:Plastic Gear(Nylon & POM )
Limit angle:NO limit
Bearing:NO Ball bearings
Horn gear spline:20T(4.8mm)
Horn type:Plastic,POM
Case:Nylon & Fiberglass
Connector wire:200mm ±5 mm
Motor:Metal brush motor
Splash water resistance:NO
| Operating Voltage Range | 4. 8V |
6V |
| Idle current(at stopped) |
5mA |
6mA |
| No load speed |
110RPM |
130RPM |
| Runnig current(at no load) |
100 mA |
120 mA |
|
Peak stall torque |
1.3kg.cm |
1.5kg.cm |
|
18.09oz.in |
20.86oz.in |
|
| Stall current |
550mA |
650mA |
