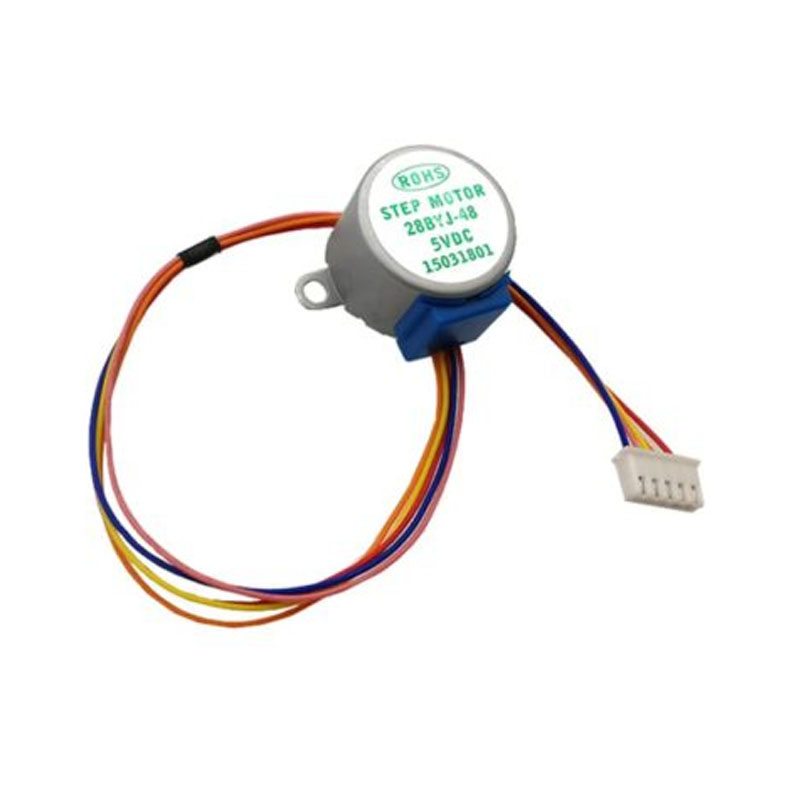

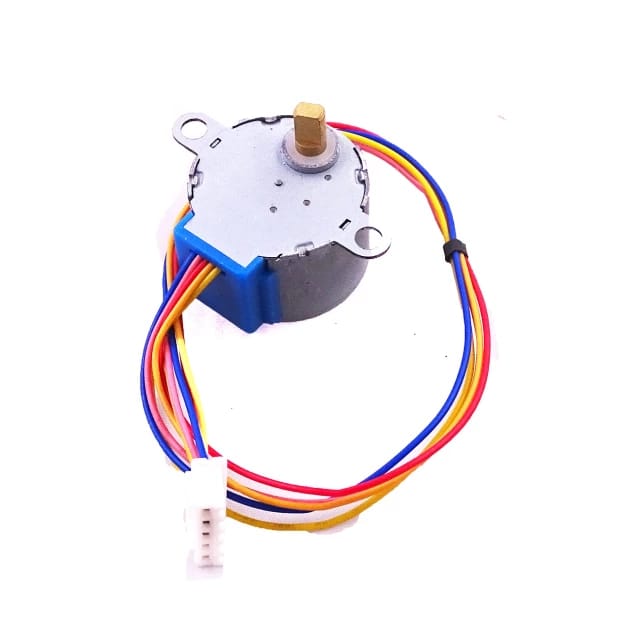

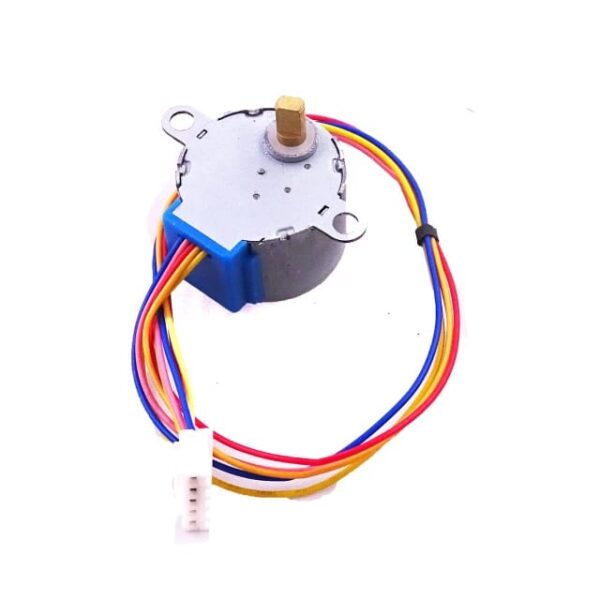

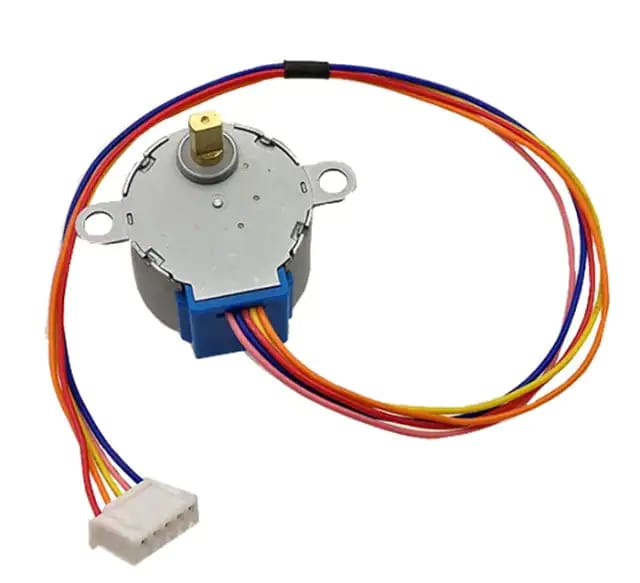

Stepper Step Motor 5V 4-Phase

Description

Description of Stepper Step Motor 5V 4-Phase

Model:28BYJ-48
Diameter: 28mm
Voltage: 5V DC
Phase:4
Wire Length :23.5CM
Step angle: 5.625 x 1/64
Reduction ratio: 1/64
5 lines cable 4 phase stepper motor can be driven by ULN2003 chip, can also be connected in phase 2 development board used for supporting the use of a direct plug and easy to use stepper motor used in the development board
Weight:34g

Stepper Step Motor 5V 4-Phase can be driven by ordinary ULN2003 chip can also be connected in phase 2 development board used for supporting the use of a direct plug and easy to use stepper motor used in the development board.

Features :

*100% Brand new and high quality

*Made of high quality material, more durable.

*Low noise, reliable use

*DC 5V 4-phase stepper motor + for Arduino driver test module board

*A, B, C, D four-phase LEDs indicate the working state of the stepper motor

*Stepper motor with standard interface for direct insertion



Specifications:

*Color: As Pictures Show

*Rated voltage: DC5V 4 phase

*Step angle: 5.625 x 1/64

*No load absorption frequency: >600Hz

*No-load extraction frequency: >1000Hz

*Pulling torque: >34.3mN.m (120Hz)

*stop torque: >34.3MN.m

*DC resistance: 200Ω±7% (25C)

*Insulation resistance: >10MΩ (500V)

*Dielectric strength: 600V AC / 1mA / 1s

*Edge rating: A

*Temperature rise: <40K (120Hz)

*Noise: <40dB (120Hz, no load, 10cm)
