Raspberry Pi LED Web Control STEM Activity

Welcome to the Raspberry Pi LED Web Control STEM activity! In this hands‑on tutorial, you’ll learn how to wire an LED safely, set up a headless Raspberry Pi 5 or Raspberry Pi 4 on your iPhone hotspot, and build a single‑page web interface using Flask, HTML, CSS, and JavaScript. This project teaches core principles of electronics, web development, and the scientific method in a fun, accessible way for learners of all ages.

Materials & Safety

  • Raspberry Pi 5 with Raspberry Pi OS Lite
  • LED (5 mm) & 220 Ω resistor
  • Breadboard & jumper wires
  • Laptop/tablet for editing code
  • iPhone hotspot SSID & password

Safety Tip: The GPIO pins operate at 3.3 V and are rated for around 16 mA per pin (total ≤ 50 mA) to prevent overloading the SoC and power regulator, which could cause voltage collapse or damage. Calculate the resistor using Ohm’s Law: R = (Vₛₚₚₗᵧ – Vf_LED) / I, choosing a standard resistor value in the 220–470 Ω range for typical LEDs. So, a resistor (commonly 220–470 Ω) keeps the current within safe limits by dropping excess voltage before it reaches the LED. Minors must be supervised by a qualified teacher or adult experienced in electronics to guide correct wiring, enforce safety protocols, and provide immediate assistance in case of any issues. Follow all local regulations and school policies regarding electrical experiments and safety compliance to create a responsible and secure learning environment for everyone involved.

1. Ask & Hypothesize

  • Question: Can a web page turn an LED on/off remotely?
  • Hypothesis: Clicking “ON” lights the LED; “OFF” turns it off .
Web Page: User Interface (UI)

2. Build the Circuit

  1. Place LED on breadboard.
  2. Connect resistor to LED’s anode (long leg) → GPIO 17 (BCM numbering).
  3. LED’s cathode (short leg) → GND pin.
  4. Power on the Pi and verify connections.

3. Headless Network Setup

1- On your laptop, add an empty ssh file to /boot to enable SSH on first boot .

2- In /boot/wpa_supplicant.conf, add your hotspot credentials for auto‑Wi‑Fi connection .

3- Boot the Pi and SSH in:

    ssh pi@<Pi_IP_address>

    4- Confirm SSH is enabled via sudo raspi-config → Interface Options → SSH.

    4. Code the Flask Backend

    4.1- Install dependencies:

      sudo apt update
sudo apt install python3-flask python3-rpi.gpio

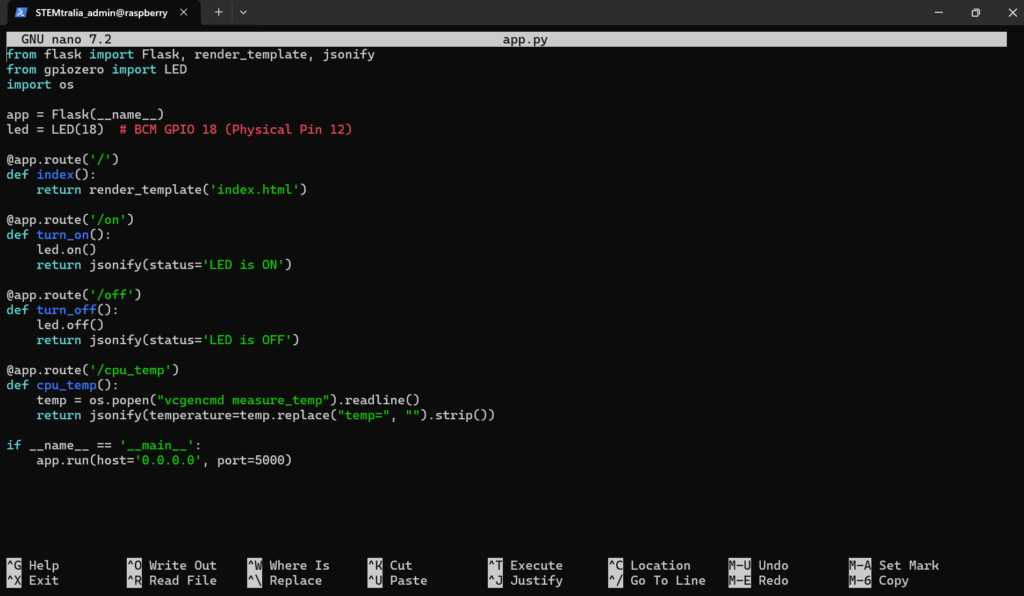

      4.2- Create app.py:

      from flask import Flask
import RPi.GPIO as GPIO

GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.OUT)

app = Flask(__name__)

@app.route('/on')
def on():
    GPIO.output(17, GPIO.HIGH)
    return 'LED ON'

@app.route('/off')
def off():
    GPIO.output(17, GPIO.LOW)
    return 'LED OFF'

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

      Flask offers a simple way to serve web routes .

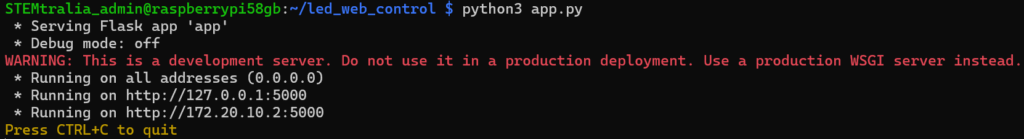

      4.3- Run with python3 app.py.

      5. Create the Web Page

      Save index.html alongside app.py:

      <!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <meta name="description" content="Learn Raspberry Pi LED Web Control: wire an LED, build a mobile‑friendly Flask & JavaScript interface. Fun STEM project for all ages!">
  <title>STEM Raspberry Pi LED Web Control Tutorial</title>
  <style>
    body { font-family: sans-serif; text-align: center; padding: 2rem; }
    button { font-size: 1.2rem; padding: 1rem; margin: 0.5rem; }
  </style>
</head>
<body>
  <h1>Raspberry Pi LED Web Control</h1>
  <button onclick="fetch('http://<Pi_IP>:5000/on')">ON</button>
  <button onclick="fetch('http://<Pi_IP>:5000/off')">OFF</button>
  <script>
    // JavaScript fetch() calls Flask routes to toggle GPIO .
  </script>
</body>
</html>

      6. Test & Observe

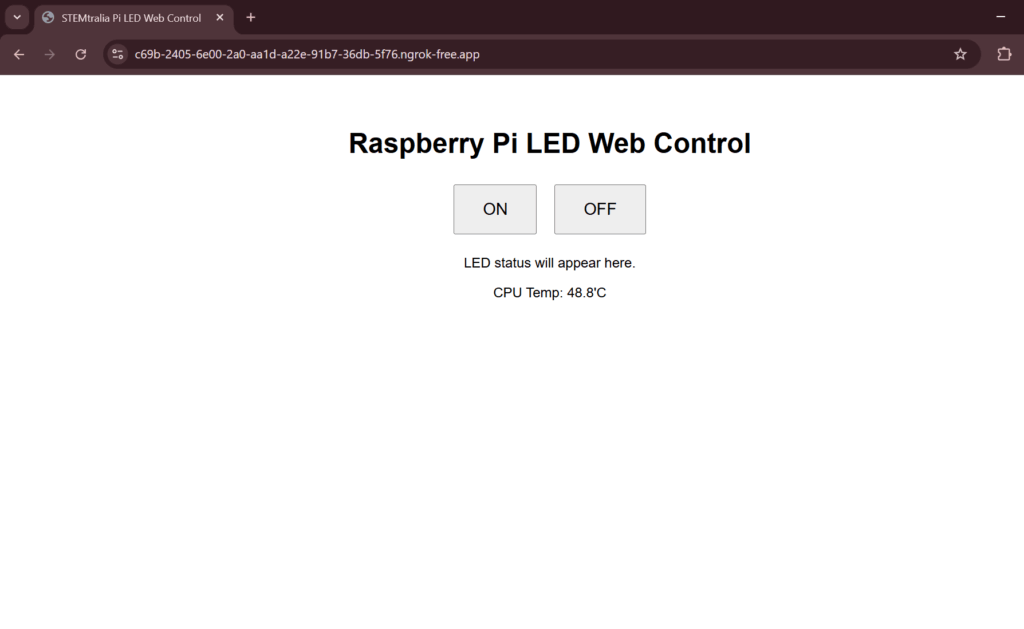

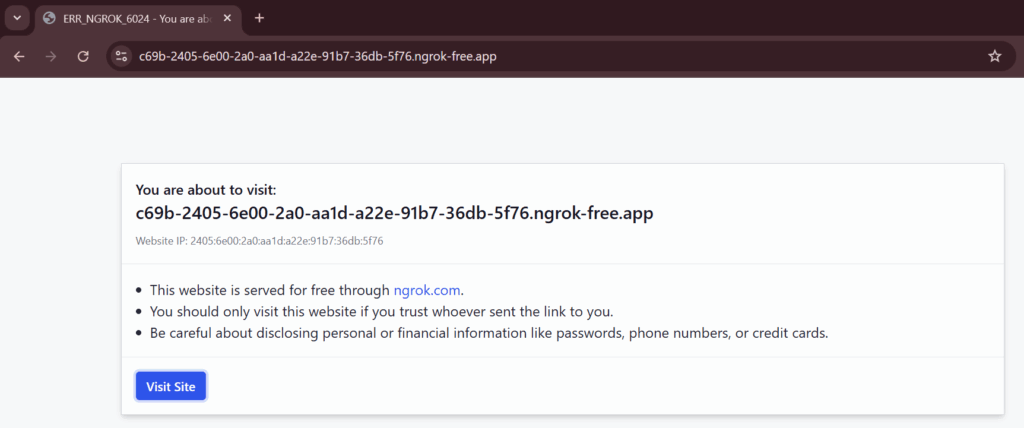

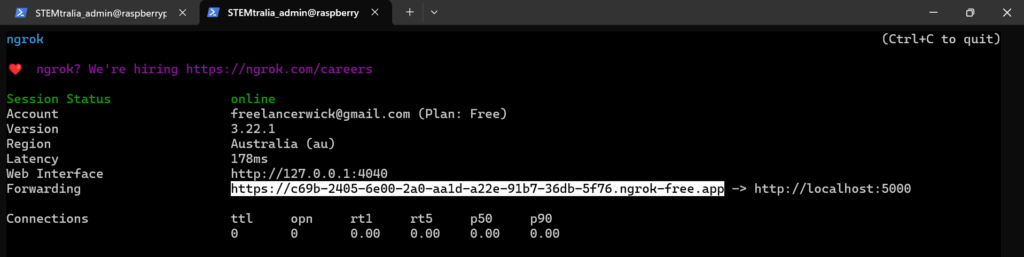

      Open any browser on your hotspot network to http://<Pi_IP>:5000. Click ON/OFF and observe the LED. Record results and compare to your hypothesis .

      7. Reflect & Extend

      a. Discuss the Importance of a Resistor:

      • Understand why a resistor is essential in the LED circuit to prevent excessive current that could damage the Raspberry Pi’s GPIO pins.​

      b. Enhance the Web Interface with LED Status:

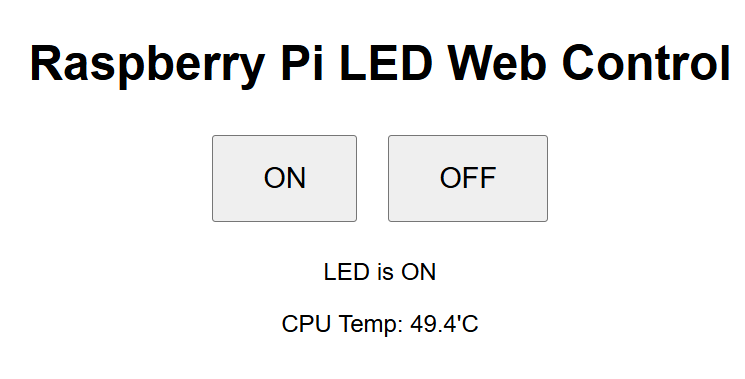

      • Modify your JavaScript code to display messages like “LED is ON” or “LED is OFF” after each action. This can be achieved using the .then() callback in your fetch requests.​

      c. Monitor and Display Raspberry Pi’s Internal Parameters:

      • Introduce real-time monitoring of the Raspberry Pi’s CPU temperature and display it on your web interface. This adds an educational layer, teaching users about system monitoring and data visualization.
